간단한 설명

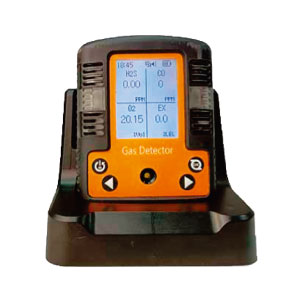

MS104K-M 전체
가스 농도가 기준을 초과할 경우 가스 누출이나 경보를 신속하고 정확하게 검출하기 위한 감지기로 한개의 장비로 1~4개의 가스를 테스트 할 수 있습니다,

- 제품특징

▶ 최대 4가지 가스를 동시에 측정 가능합니다.

▶ 분산 / 펌프 흡수 측정가능 하며 외부 펌프와 도구는 내장 된 통합연결 펌프로 연결됩니다.

▶ 단위 무료 스위치, 단위 선택: umol / mol, ppm, mg/m3, VOL%, LEL%.

▶ 4 키 버튼 동작.

▶ 대용량 데이터 저장 기능

▶통신 인터페이스: TYPE-C, 선택 사항: 블루투스, 외부 블루투스 프린터.

▶ 무선 송신 (선택) LORA, SOS 한 클릭 호출 기능

- 세부사양

모델	MS104K-L
분해능	0.001ppm (0-10ppm 고정밀) / 0.01ppm (0 ~ 10ppm)00.01ppm (0 ~ 100ppm)0.1 ppm (0~1000ppm), 1ppm (0~1000ppm); 0.1% LEL; 0.1%, 0.01%Vol
응답시간	T90≤20 초
작동환경	온도 : -20℃~60℃ : 습도 : 10%-95%RH (응결없음)
방폭등급	Exia llCT4Ga
작동전압	DC 단일 장치의 표준 전원은 24V 1A 또는 DC 스위칭 전원은 1A 이상
보호수준	IP68 방수
치수	167 * 64 * 62 mm(LWH)
무게	약 280g
디스플레이	LCD형

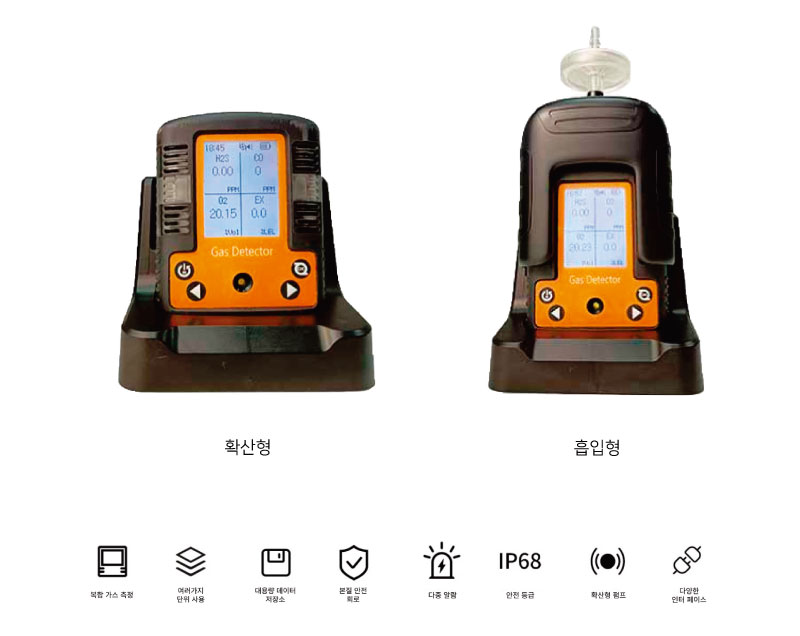

측정방법	내부 흡입형, 확산형, 내부 흡입형+대기확산형
제품구성	교정커버, 흡입노즐, 매뉴얼, 인증서, USB 충전기, 제품 케이스

- 센서규격

측정가스	측정범위	최소 측정 범위	측정가스	측정범위	최소 측정 범위	측정가스	측정범위	최소 측정 범위
VOCs(VOC)	0-20ppm	0.01ppm	Ethylene oxide (ETO)	0-100%LEL	0.1%LEL	Chlorine dioxide (CLO2)	0-1ppm	0.001ppm
VOCs(VOC)	0-200ppm	0.1ppm	Phosgene(COCL2)	0-1ppm	0.001ppm	Chlorine dioxide (CLO2)	0-10ppm	0.01ppm
VOCs(VOC)	0-2000ppm	1ppm	Phosgene(COCL2)	0-10ppm	0.01ppm	Chlorine dioxide (CLO2)	0-100ppm	0.01ppm
VOCs(VOC)	0-10000ppm	1ppm	Silane(SiH4)	0-1ppm	0.001ppm	Ethylene oxide (ETO)	0-100ppm	0.01ppm
Hydrogen Sulfide (H2S)	0-10ppm	0.01ppm	Silane(SiH4)	0-50ppm	0.01ppm	Ethylene oxide (ETO)	0-1000ppm	0.1ppm
Hydrogen Sulfide (H2S)	0-100ppm	0.01ppm	Fluorine gas (F2)	0-1ppm	0.001ppm	Ammonia (NH3)	0-10ppm	0.01ppm
Hydrogen Sulfide (H2S)	0-500ppm	0.1ppm	Fluorine gas (F2)	0-1ppm	0.001ppm	Ammonia (NH3)	0-100ppm	0.01ppm
Hydrogen Sulfide (H2S)	0-2000ppm	1ppm	Fluorine gas (F2)	0-100ppm	0.01ppm	Ammonia (NH3)	0-1000ppm	0.1ppm
Methane (CH4)	0-100%LEL	0.1%LEL	Hydrogen Fluoride (HF)	0-10ppm	0.01ppm	Ammonia gas (NH3)	0-5000ppm	1ppm
Methane (CH4)	0-100%VOL	0.01%VOL	Hydrogen Fluoride (HF)	0-50ppm	0.01ppm	Ammonia (NH3)	0-100%LEL	0.1%LEL
Oxygen (O2)	0-30%VOL	0.01%VOL	Hydrogen Bromide(HBr)	0-50ppm	0.01ppm	Phosphine (PH3)	0-5 ppm	0.001ppm
Oxygen (O2)	0-100%VOL	0.01%VOL	Ethylborane(B2H6)	0-10ppm	0.001ppm	Phosphine (PH3)	0-20 ppm	0.01ppm
Carbon Monoxide (CO)	0-100ppm	0.01ppm	Arsine(AsH3)	0-1ppm	0.001ppm	Phosphine (PH3)	0-2000 ppm	1ppm
Carbon Monoxide (CO)	0-1000ppm	0.1ppm	Arsine(AsH3)	0-10ppm	0.001ppm	Chlorine (CL2)	0-20ppm	0.01ppm
Carbon Monoxide (CO)	0-2000ppm	1ppm	Germanium(GeH4)	0-1ppm	0.001ppm	Chlorine (CL2)	0-200ppm	0.1ppm
Carbon Monoxide (CO)	0-5000ppm	1ppm	Germanium(GeH4)	0-10ppm	0.001ppm	Hydrogen Cyanide(HCN)	0-100ppm	0.01ppm
Carbon Monoxide (CO)	0-10000ppm	1ppm	Germanium(GeH4)	0-50ppm	0.01ppm	Hydrogen Chloride(HCL)	0-20ppm	0.01ppm
Carbon dioxide (CO2)	0-5000ppm	1ppm	Hydrazine, hydrazine hydrazide (N2H4)	0-1ppm	0.001ppm	Hydrogen chloride (HCL)	0-200ppm	0.1ppm
Carbon dioxide (CO2)	0-50000ppm	1ppm	Hydrazine, hydrazine hydrazide (N2H4)	0-300ppm	0.1ppm	Nitrogen Oxides (NOX)	0-100ppm	0.01ppm
Carbon dioxide (CO2)	0-5%VOL	0.01%VOL	Nitrogen Dioxide (NO2)	0-20ppm	0.01ppm	Nitrogen Oxides (NOX)	0-500ppm	0.1ppm
Carbon dioxide (CO2)	0-20%VOL	0.01%VOL	Nitrogen Dioxide (NO2)	0-2000ppm	1ppm	Nitrogen Oxides (NOX)	0-2000ppm	1ppm
Carbon dioxide (CO2)	0-100%VOL	0.01%VOL	Sulfur dioxide (SO2)	0-20ppm	0.01ppm	Tetrahydrothiophene (THT)	0-50mg/m3	0.01 mg/m3
Formaldehyde (CH2O)	0-10ppm	0.01ppm	Sulfur dioxide (SO2)	0-100ppm	0.01ppm	Bromine (Br2)	0-10ppm	0.01ppm
Formaldehyde (CH2O)	0-50ppm	0.01ppm	Sulfur dioxide (SO2)	0-1000ppm	0.1ppm	Bromine gas (Br2)	0-50ppm	0.01ppm
Formaldehyde (CH2O)	0-100ppm	0.01ppm	Sulfur dioxide (SO2)	0-5000ppm	1ppm	Nitrogen dioxide	0-100ppm	0.01ppm
Formaldehyde (CH2O)	0-1000ppm	1ppm	Nitric Oxide (NO)	0-20ppm	0.01ppm	Nitrogen dioxide	0-1000ppm	0.1ppm
Ozone (O3)	0-1ppm	0.001ppm	Nitric Oxide (NO)	0-100ppm	0.01ppm	Gas (EX)	0-1000ppm	1ppm
Ozone (O3)	0-10ppm	0.01ppm	Nitric Oxide (NO)	0-1000ppm	0.1ppm	Gas (EX)	0-100%LEL	0.1%LEL
Ozone (O3)	0-10ppm	0.01ppm	Nitric Oxide (NO)	0-5000ppm	1ppm	Gas (EX)	0-100%VOL	0.01%VOL
Ozone (O3)	0-2000ppm	1ppm
